3M™ Thinsulate™ Insulation Kit for Ford Transit Van (High Roof, Pre-Cut)
Meet the proven way to quiet and stabilize temps in your Transit build.
Free shipping to the lower 48 US states. Please allow 1-2 weeks before shipping.
This pre-cut 3M™ Thinsulate™ AU6002 kit is CNC-cut to the main wall, ceiling, and door cavities of 2015+ Ford Transit High Roof vans (148" WB and 148" Extended), so you can install cleanly without hours of templating. The hydrophobic non-woven blends polyester and ultra-fine polypropylene fibers to deliver excellent acoustic absorption and reliable thermal performance; lightweight, compressible, and conformable for a professional finish behind panels.
Why builders choose this kit
- Drop-in, pre-cut pieces for major cavities save serious build time and mess.
- Acoustic control you can feel: AU6002 is engineered for vehicle noise reduction.
- Hydrophobic fibers resist moisture, mold, and mildew; no extra vapor barrier needed in typical use.
- Meets FMVSS 302 flammability requirements for automotive interiors.
What’s included
- Pre-cut AU6002 panels for cargo-area walls, ceiling, and doors

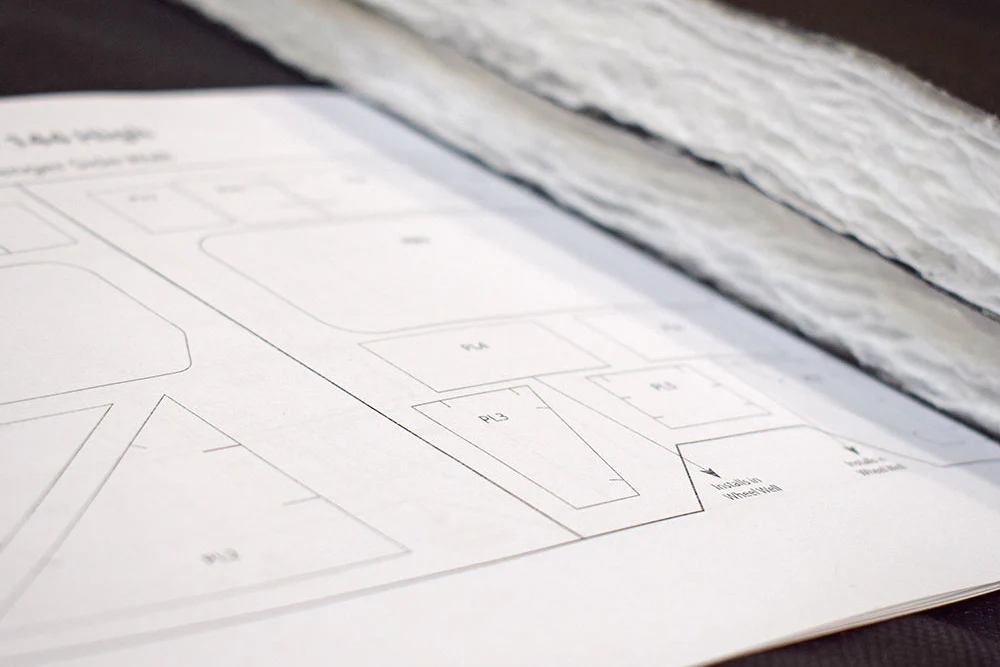

- Placement diagram for piece locations
- Coverage designed for open cavities in the cargo area
What’s not included
- Cab area and vehicle floor
- Material to stuff between beams or closed/partially covered cavities
- Window surrounds beyond the main open cavity pieces (you may have extras if you have windows)
Video: 3M™ Thinsulate™ Insulation Kit for Ford Transit Van
3M™ Thinsulate™ AU6002 — Key Specs
| Attribute | Spec | Notes |
|---|---|---|
| Material | 3M™ Thinsulate™ Acoustic Insulation AU6002 | Double black scrim; automotive grade |
| Roll Width | 60 in (1524 mm) | Standard AU6002 roll width |
| Thickness | ~44 mm | Nominal, uncompressed |
| Density | ~16.1 kg/m³ | Per 3M AU6002 series data |
| Thermal Resistance | RSI ≈ 0.96 (AU6002 @ 44 mm) | Commonly referenced as approx. R-5.45 per inch |
| Acoustic Behavior | High absorption, mid–high frequencies | Engineered for vehicle sound control |
| Fire Resistance | Meets FMVSS 302 | Automotive flammability standard |
| Moisture Behavior | Hydrophobic fibers | Resists moisture, mold, mildew |
| Install Method | Adhere panels inside cavities | Pre-cut per cavity; diagram included |
| Coverage | Walls, ceiling, doors (cargo) | Cab and floor not included |
Fitment & Variants
- High Roof 148" WB (2015+)
- High Roof 148" Extended (2015+)
Low/mid-roof models are not included in this pre-cut kit.
FAQ (Frequently Asked Questions) click to expand
1.Will this fit my 2015+ Transit High Roof?
Yes. The kit is cut for 2015+ Ford Transit High Roof vans in 148" WB and 148" Extended wheelbases. Select your wheelbase in options.
2.Does it include the cab or the floor?
No. Coverage is for cargo-area walls, ceiling, and doors only. Cab and floor are not included.
3.Is a vapor barrier required?
3M™ Thinsulate™ fibers are hydrophobic and resist moisture, mold, and mildew in typical van applications. Most builders do not add a separate barrier behind panels. Follow your build philosophy and local codes.
4.How does AU6002 help with road noise?
AU6002 is an automotive acoustic insulator with high absorption, especially in mid-to-high frequencies common to road and wind noise.
5.What about fire safety?
AU6002 meets the FMVSS 302 interior flammability standard commonly used for vehicle components.
