Walkable Solar H Channel Mounting Rails - Legacy Stock (Pair)
Walkable Solar H Channel Mounting Rails – Legacy Stock (2 Rails per Kit)
Final Clearance – Legacy Fitment Only
Once these are gone, they won’t be restocked. Ideal for customers with older walkable panel setups or custom projects requiring sub-0.168" panel thickness. These will not fit the latest walkable solar panels, which now use taller J-channels designed to accommodate the included polycarbonate backing sheets.
Overview

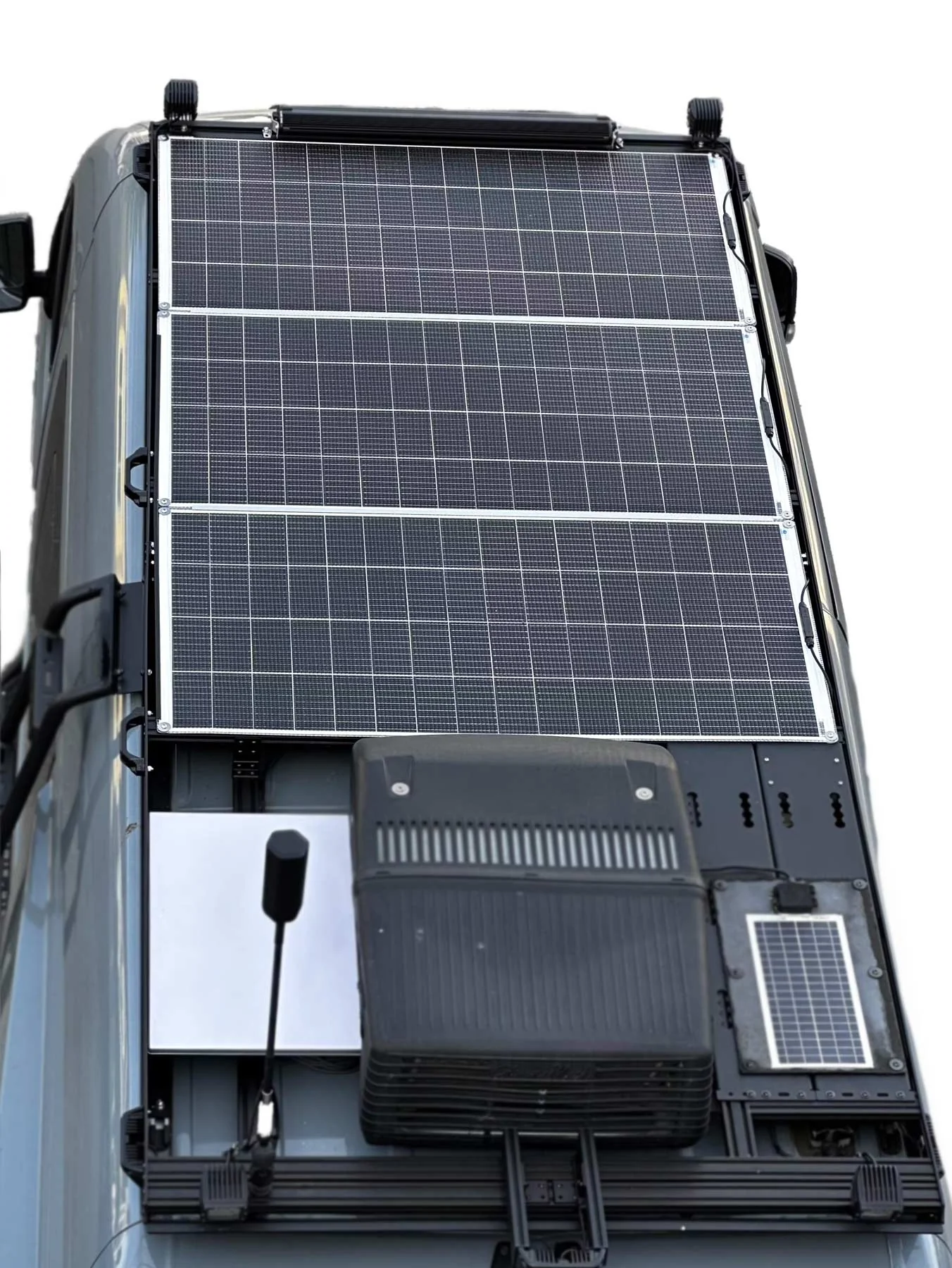

These 48" aluminum H-channel rails were designed to secure the long edges of two walkable solar panels mounted side by side on your roof rack. They help prevent wind lift and ensure a clean, low-profile finish.
Key Details

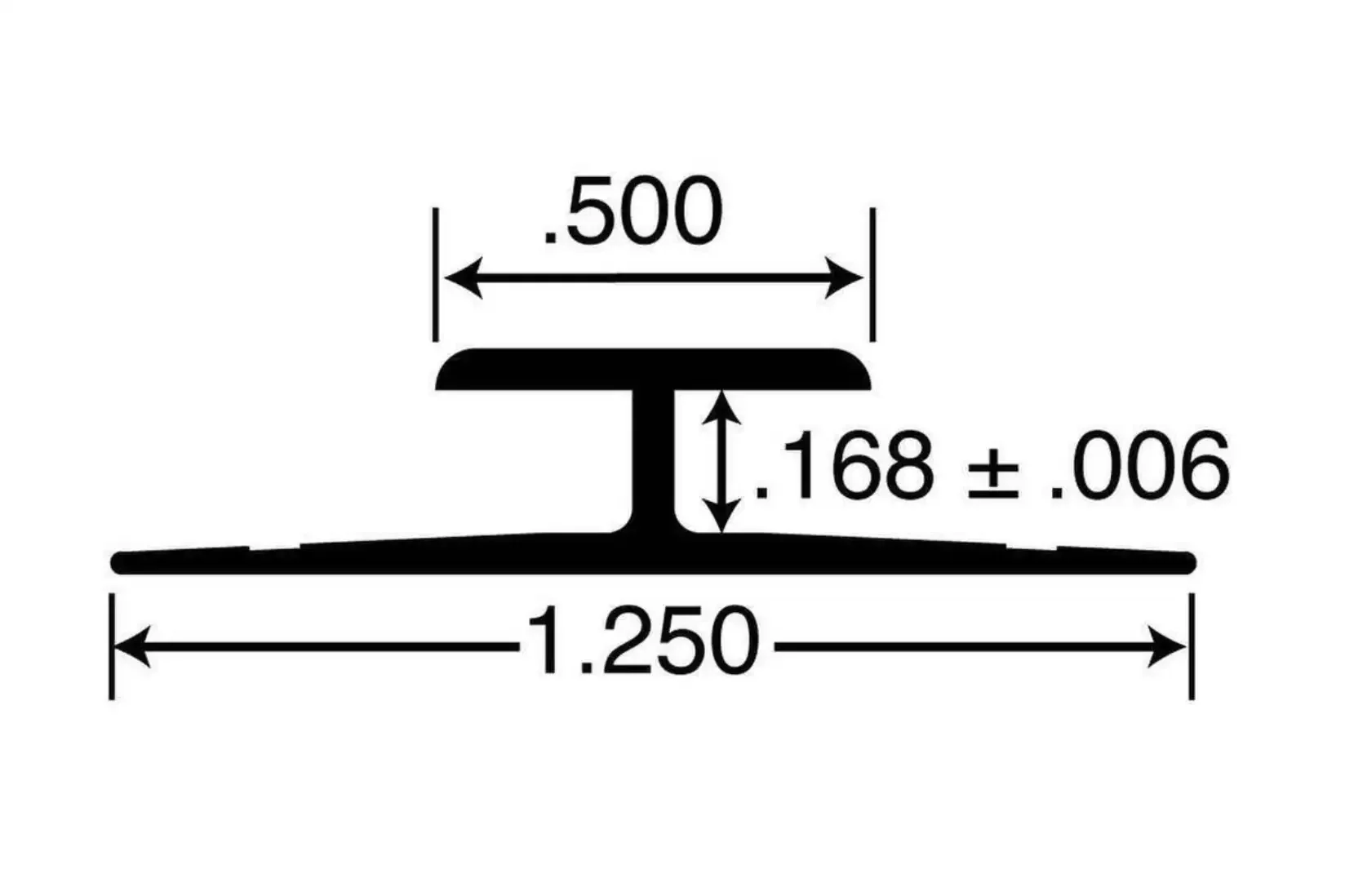

- Fits older walkable panels under 0.168" thick. Not compatible with current walkable solar panel models.
- Length: 48" (can be cut shorter if needed).
- Material:Â 6063 T5 aluminum, powder-coated black.
- Includes: 2 rails per kit.
- Free Shipping: Always free to the lower 48 states.
Installation Notes
- Attach to your deck platform using 3M VHB double-sided tape (not included).
- Slide panels into the channel, then fasten all four corners using rivnuts, bolts, and corner washers. Important: Do not install without bolts.
Original: $49.00
-70%$49.00
$14.70More Images
Walkable Solar H Channel Mounting Rails - Legacy Stock (Pair)
Walkable Solar H Channel Mounting Rails – Legacy Stock (2 Rails per Kit)
Final Clearance – Legacy Fitment Only
Once these are gone, they won’t be restocked. Ideal for customers with older walkable panel setups or custom projects requiring sub-0.168" panel thickness. These will not fit the latest walkable solar panels, which now use taller J-channels designed to accommodate the included polycarbonate backing sheets.
Overview
These 48" aluminum H-channel rails were designed to secure the long edges of two walkable solar panels mounted side by side on your roof rack. They help prevent wind lift and ensure a clean, low-profile finish.
Key Details
- Fits older walkable panels under 0.168" thick. Not compatible with current walkable solar panel models.
- Length: 48" (can be cut shorter if needed).
- Material:Â 6063 T5 aluminum, powder-coated black.
- Includes: 2 rails per kit.
- Free Shipping: Always free to the lower 48 states.
Installation Notes
- Attach to your deck platform using 3M VHB double-sided tape (not included).
- Slide panels into the channel, then fasten all four corners using rivnuts, bolts, and corner washers. Important: Do not install without bolts.
